Color Coated Coils & Sheets

Color Coated Coils & Sheets

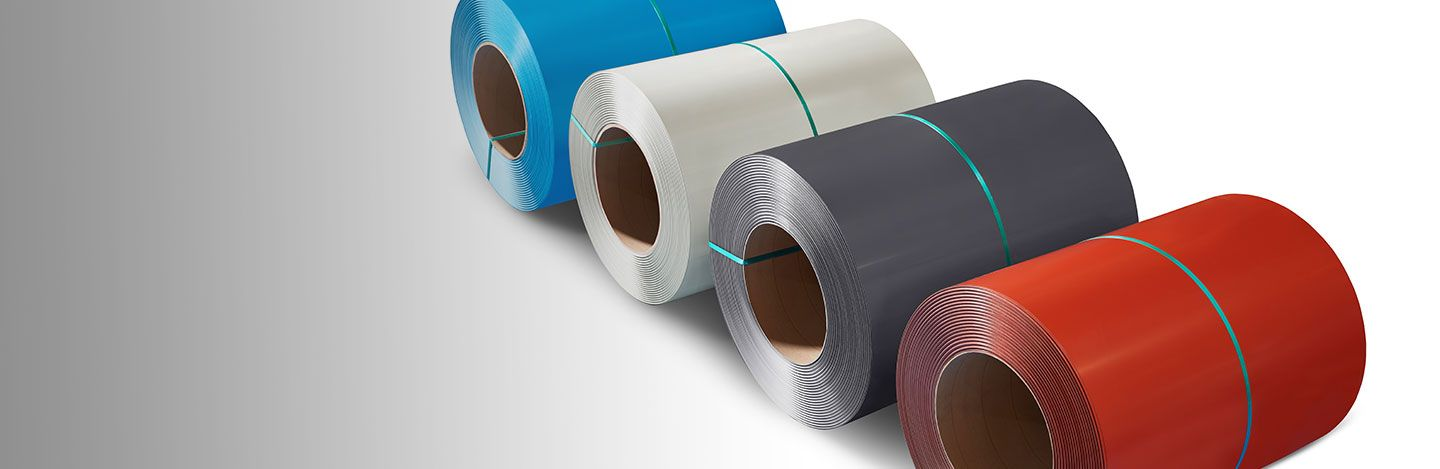

Pre-painted Color Coated Steel Coils and Sheets are engineered to offer exceptional durability and aesthetic appeal for a wide range of applications. Utilizing a base metal of Galvanized (GI) or Galvalume (GL) steel, these products undergo a rigorous multi-stage coating process involving pre-treatment, primer application, and a final top coating with high-performance polymers like Polyester, Silicon Modified Polyester (SMP), or Polyvinylidene Fluoride (PVDF). This advanced coating provides superior resistance to corrosion, UV radiation, and weathering.

Technical Specifications

Parameter	Value
Base Metal	GI (Galvanized) / GL (Galvalume)
Grade	IS 15965 / ASTM A755
Coating Type	Polyester, SMP, PVDF
Thickness Range	0.25mm to 1.2mm
Width Range	600mm to 1250mm
Coil Weight	3 – 8 MT (Metric Tons)
Thickness Tolerance	±0.03mm
Width Tolerance	±10mm
Coating Thickness	15–35 μm (Top), 5–10 μm (Back)

Color Options

• Sky Blue (#87CEEB)
• Off White (#F5F5DC)
• Brick Red (#CB4154)
• Royal Blue (#4169E1)
• Terra Cotta (#E2725B)
• Grey (#808080)
• Leaf Green (#71BC78)
• Dark Green (#0A6626)

Available Finishes

• Glossy
• Matte
• Textured
• Custom on Order

Certifications

• IS 15965 Compliant — Indian Standard for Color Coated Sheets
• ISO 9001 Certified — Quality Management System
• BIS Approved — Bureau of Indian Standards
• RoHS Compliant — Restriction of Hazardous Substances

Applications

• Industrial Roofing & Cladding
• Pre-engineered Buildings (PEB)
• Home Appliances & Furniture
• Cold Storage Panels
• Advertising Panels & Facades
• Vehicle Body Panels

Product Variants

• Plain Sheet
• Profiled Sheet (Roofing)
• Corrugated Form
• Slit Coil
